SCA-6FNHD
Description

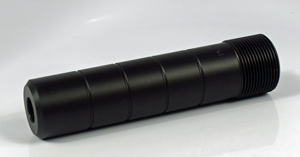

Silicon Carbide # 6 sandblasting nozzle 1" entry with 1-1/4" threads. Tuff Impact resistant design.
Our Silicon carbide nozzles are light weight, with an ergonomic grip style impact resistant jacket system. Silicon carbide Nozzles offer a longer work life than equivalent tungsten carbide nozzles. For even longer work life, look at our EVBC-6 boron carbide nozzle.
Specs:
Part Number: SCA-6FNHD
Sku: 794004
Length: 6-3/4"
Bore: 3/8"
Entry: 1"
Threads: 1-1/4" NPSM
Liner: Silicon Carbide
Jacket: Engineering grade Thermoplastic incorporating enhanced impact resistance.
Washer: NW-1514
Guide on estimated nozzle service life in hours. | |||
Nozzle Liner Material |
Steel shot/Grit / approx. Hours |
Expendable Abrasives /approx. Hours |
Aluminum Oxide/ approx Hours |
Silicon Carbide | 600 -1000 | 400 - 600 | 50 -100 |
All figures are indicative and given for liner material life comparison purposes only. Actual service life will depend on operational variable such as: blast pressure, media dimensions & media particle profile. All figures are approximate. Nozzle is considered worn whan bore is approximately 1/16" larger than when new. |
Air and power requirements for a 3/8" bore nozzle at different nozzle pressures. All figures are approximate and given for guidance purposes only. | |||||||
Bore 3/8/9.50 mm |
PSI -50 | PSI-60 | PSI-70 | PSI-80 | PSI-90 | PSI-100 | PSI-125 |
Air (CFM) | 108 | 126 | 143 | 160 | 173 | 196 | 275 |
Abrasive/LBS/hr | 668 | 764 | 864 | 960 | 1052 | 1152 | 1393 |
Horsepower | 25 | 29 | 32 | 36 | 40 | 44 | 57 |
