SCA-4FNHD
Description

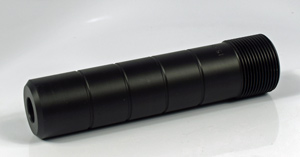

Silicon Carbide # 4 sandblasting nozzle 1" entry with 1-1/4" threads. Tuff Impact resistant design.
Our Silicon carbide nozzles are light weight, with an ergonomic grip style impact resistant jacket system. Silicon carbide Nozzles offer a longer work life than equivalent tungsten carbide nozzles. For even longer work life, look at our EVBC-4 boron carbide nozzle.
Specs:
Part Number: SCA-4FNHD
Sku: 794002
Length: 5-1/4"
Bore: 1/4"
Entry: 1"
Threads: 1-1/4" NPSM
Liner: Silicon Carbide
Jacket: Engineering grade Thermoplastic incorporating enhanced impact resistance.
Washer: NW-1514
Guide on estimated nozzle service life in hours. | |||
Nozzle Liner Material |
Steel shot/Grit / approx. Hours |
Expendable Abrasives /approx. Hours |
Aluminum Oxide / approx. hours |
Silicon Carbide | 600 -1000 | 400 - 600 | 50 -100 |
Air and power requirements for a 1/4" bore nozzle at different nozzle pressures. All figures are approximate and given for guidance purposes only. | |||||||
Bore 1/4 : 6.35 mm |
PSI -50 | PSI-60 | PSI-70 | PSI-80 | PSI-90 | PSI-100 | PSI-125 |
Air (CFM) | 50 | 54 | 61 | 68 | 74 | 81 | 95 |
Abrasive/LBS/hr | 268 | 300 | 354 | 400 | 448 | 500 | 675 |
