SCA-5FNHD
Description

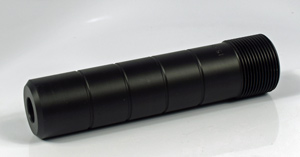

Silicon Carbide # 5 sandblasting nozzle 1" entry with 1-1/4" threads. Tuff Impact resistant design.
Our Silicon carbide nozzles are light weight, with an ergonomic grip style impact resistant jacket system. Silicon carbide Nozzles offer a longer work life than equivalent tungsten carbide nozzles. For even longer work life, look at our EVBC-5 boron carbide nozzle.
Specs:
Part Number: SCA-5FNHD
Sku: 794003
Length: 5-3/4"
Bore: 5/16"
Entry: 1"
Threads: 1-1/4" NPSM
Liner: Silicon Carbide
Jacket: Engineering grade Thermoplastic incorporating enhanced impact resistance.
Washer: NW-1514
Guide on estimated nozzle service life in hours. |
|||
Nozzle Liner Material |
Steel shot/Grit / approx. Hours |
Expendable Abrasives /approx. Hours |
Aluminum Oxide/ approx Hours |
Silicon Carbide | 600 -1000 | 400 - 600 | 50 -100 |
All figures are indicative and given for liner material life comparison purposes only. Actual service life will depend on operational variable such as: blast pressure, media dimensions & media particle profile. All figures are approximate. Nozzle is considered worn whan bore is approximately 1/16" larger than when new. |
Air and power requirements for a 5/16" bore nozzle at different nozzle pressures. All figures are approximate and given for guidance purposes only. | |||||||
Bore 5/16"/8.0mm | PSI -50 | PSI-60 | PSI-70 | PSI-80 | PSI-90 | PSI-100 | PSI-125 |
Air (CFM) | 80 | 90 | 100 | 115 | 126 | 140 | 190 |
Abrasive/LBS/hr | 468 | 532 | 604 | 672 | 740 | 825 | 1000 |
Horsepower | 17 | 20 | 25 | 27 | 28 | 30.5 | 37 |
