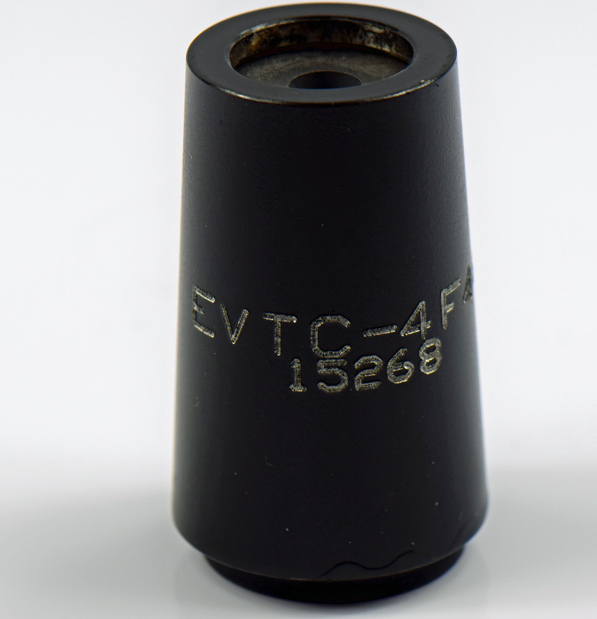

Short Straight 1/4" bore,Boron carbide lined, steel jacketed, cone shaped nozzles.
Description
Straight bore, boron carbide lined, cone shaped nozzles with steel jacket.
| Part Number | Model Number | Overall length | Bore inch | Bore mm | O.D. at bottom of jkt | Width at top of jacket |
| 7540230 | EVTC-3F44 | 1.75" / 44.45 mm | 3/16 | 4.80 | 1.12" / 28.5 mm | 0.925" / 23.50mm |
| 754031 | EVTC-4F44 | 1.75"/44.45 mm | 1/4 | 6.35 | 1.12" / 28.5 mm | 0.925" / 23.50mm |
| 754032 | EVTC-5F44 | 1.75"/ 44.45 mm | 5/16 | 8.00 | 1.12" / 28.5 mm | 0.925" / 23.50mm |
