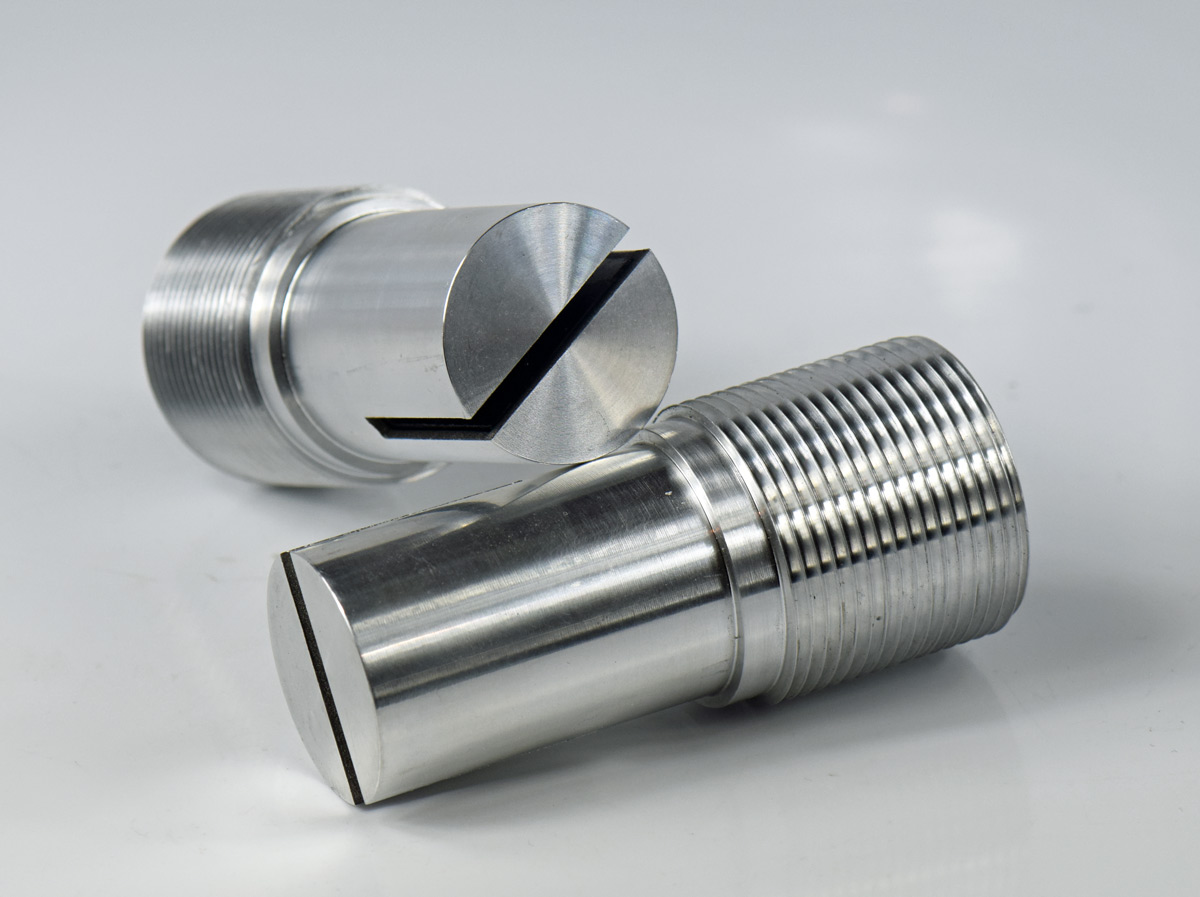

Fan Nozzle
Fan Nozzle
Description
Chart Showing 3 Fan sizes with dimensions. Plus estimated air use equivalence by standard nozzle size.
| Model | Fan Width mm/inch | Fan Height mm/inch | Nozzle Length | Threads. NPSM | Air equivalence | ||
| FAN-564058-114 | 16.5 mm | 5/8” | 2 mm | 5/64” | 3.67” | 1-1/4” | # 4 |
| FAN-564078-114 | 22 mm | 7/8” | 2 mm | 5/64” | 3.67” | 1-1/4” | # 5 |
| FAN-180078-114 | 22 mm | 7/8” | 3 mm | 1/8” | 3.67” | 1-1/4” | # 6 |
