Tungsten carbide double venturi nozzle. 1/4" Bore. Contractor threads
Description

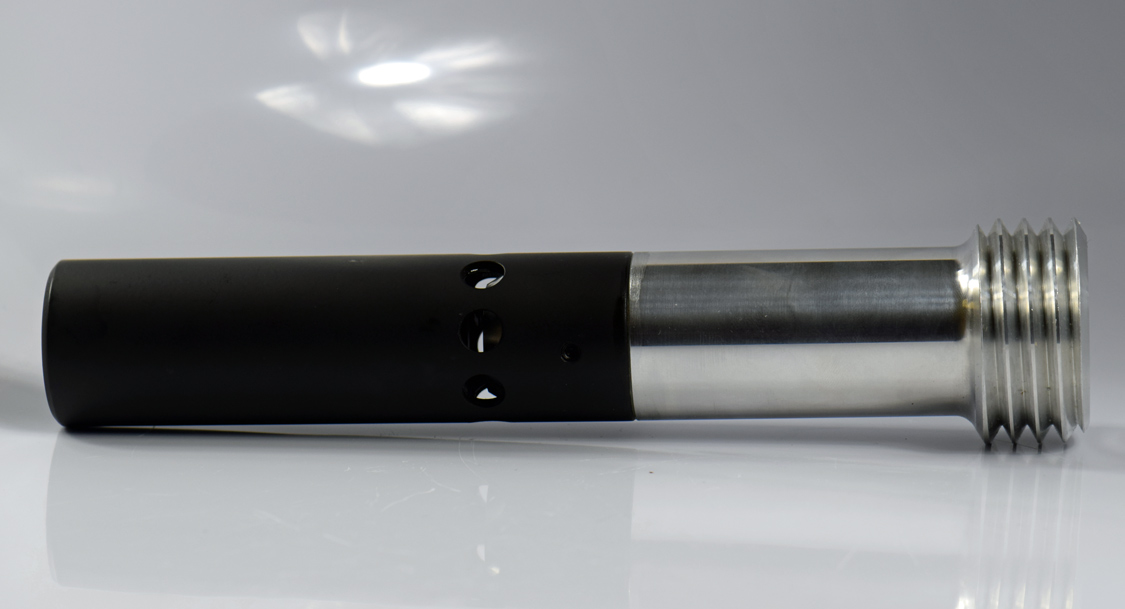

Model UDV-4/50. Double venturi, tungsten carbide. 1/4" (6.35 mm) Bore.
Threads: Contractor - Coarse - 50 mm.
Blast cleans with a wider pattern and reduced velocity. Works well with softer abrasives.
Not recommended for use with abrasives incorporating aluminum oxide.
| Model No. | Part Number | Length | Entry | Bore |
| UDV-4/50 | 824200 | 5-1/2" ( 139.70 mm) | 1" (25 mm) | 1/4" (6.35 mm) |
| UDV-5/50 | 824201 | 6-1/2" (165.10 mm) | 1" (25 mm) | 5/16" (8.00 mm) |
| UDV-6/50 | 824202 | 7" (177.80 mm) | 1" (25 mm) | 3/8" (9.50 mm) |
| UDV-7/50 | 824203 | 8-1/2" (215.90 mm) | 1" (25 mm) | 7/16" (11.00 mm) |
| UDV-8/50 | 824204 | 9-1/4"" (234.95 mm) | 1" (25 mm) | 1/2" (12.75 mm) |
