UAM-4X1/50
Print This Product
Email to Friend

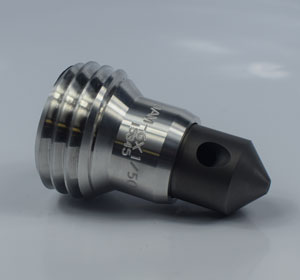

Tungsten carbide, 45 degree, single(1)outlet angle nozzle, outlet 1/4" bore. Aluminum jacket with 50mm/2" UNC/contractor threads
Description
45 deg. Angle Nozzle - one (1) outlet- aluminum jacket with 50mm / 2" unc / contractor threads.
Model: UAM-4X1/50 uses gasket NW-3820
| Inlet inch/mm | Bore inch/mm | Length inch/mm | Outlet | |||
| 25/32 | 20 | 1/4" | 6.35 | 3.2" | 81.2 | 1 |
